• Read all instructions before use.
• Incorrect set-up or loose positioning may cause false or missed notifications.
• This is not a medical device.
• Keep cords out of walkways.

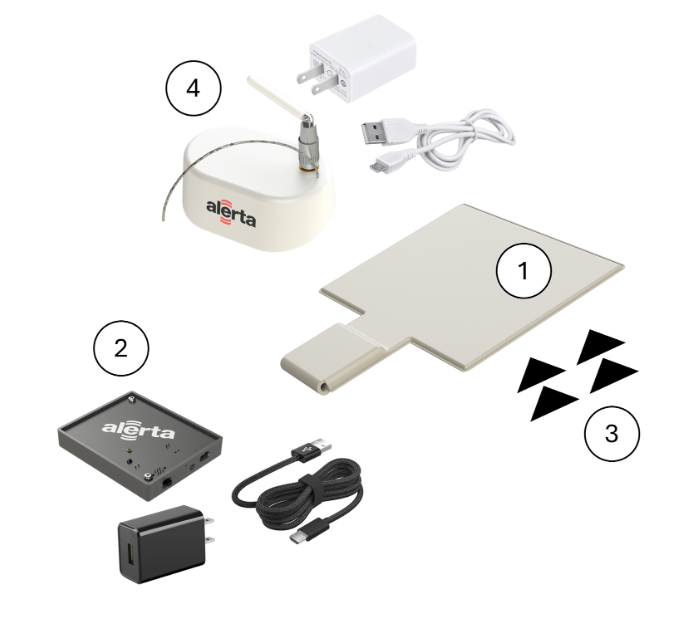

1. Alerta Rest Chair Pad.
2. Alerta Beacon (assembled in pad pouch) with USB Power Cable & Wall Adapter. Do not remove Beacon device from pouch.
3. Adhesive "no-slip" grips (four).
4. Alerta Wedge with USB Power Cable & Wall Adapter (white).

• Download the Alerta Family mobile app and login to see your Alerta Home devices.

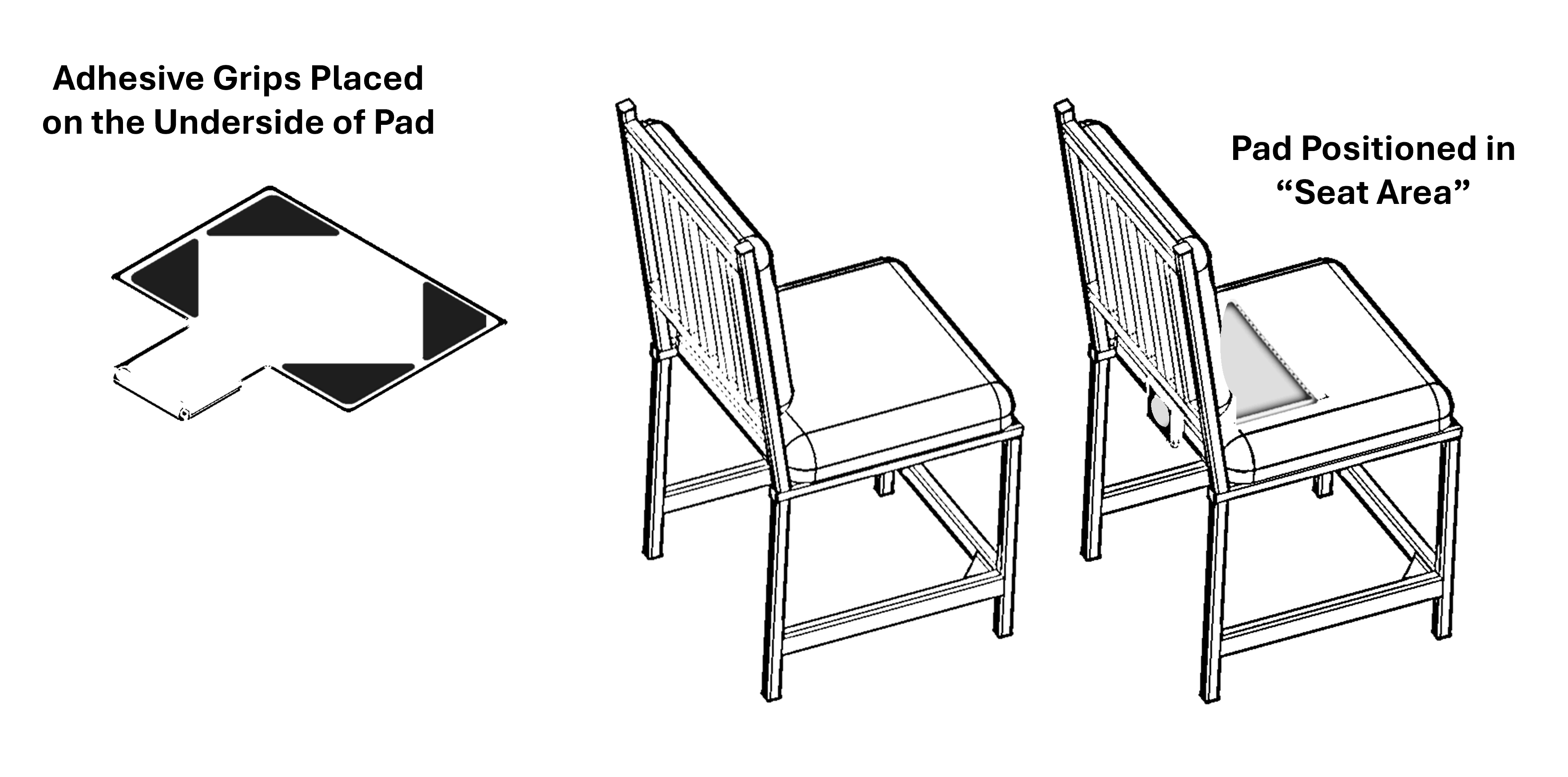

• Attach adhesive grips to the underside of sensor pad corners.
• Place sensor pad on the chair seat, with the printed text facing up.
• Cushions or incontinence pads may be placed on top of the Alerta sensor pad's seat area.
• Let the transmitter pouch hang off of the back, side, or front of the chair (based on chair design).
• Make sure that the pouch hangs straight down (perpendicular to the sensor pad) with a clear line of sight to the Alerta Wedge.

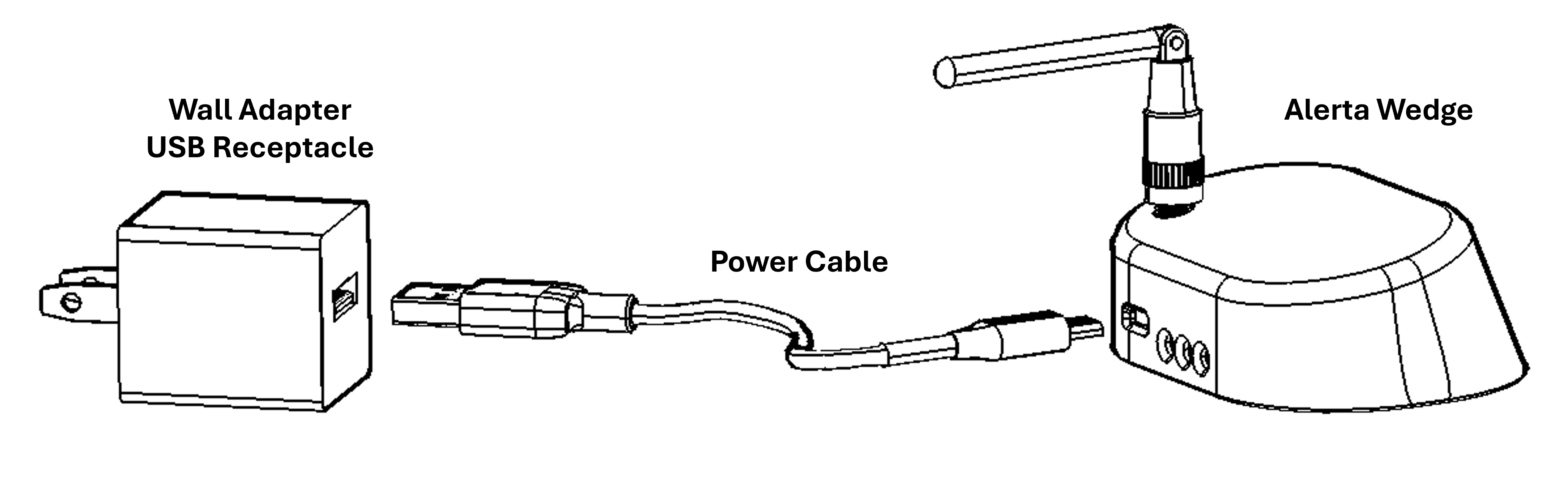

• Connect (white) USB power cable to Alerta Wedge device and to (white) wall adapter; plug adapter into wall outlet.
• Route cord safely to avoid hazards.

💡 Alerta Wedge LED Colors

• 🔵 Blue (flashing): Connected to Cellular Network
• 🟢 Green (continuous): Alerta Wedge is operating
• 🔴 Red (instantaneous): signal received from Alerta Beacon

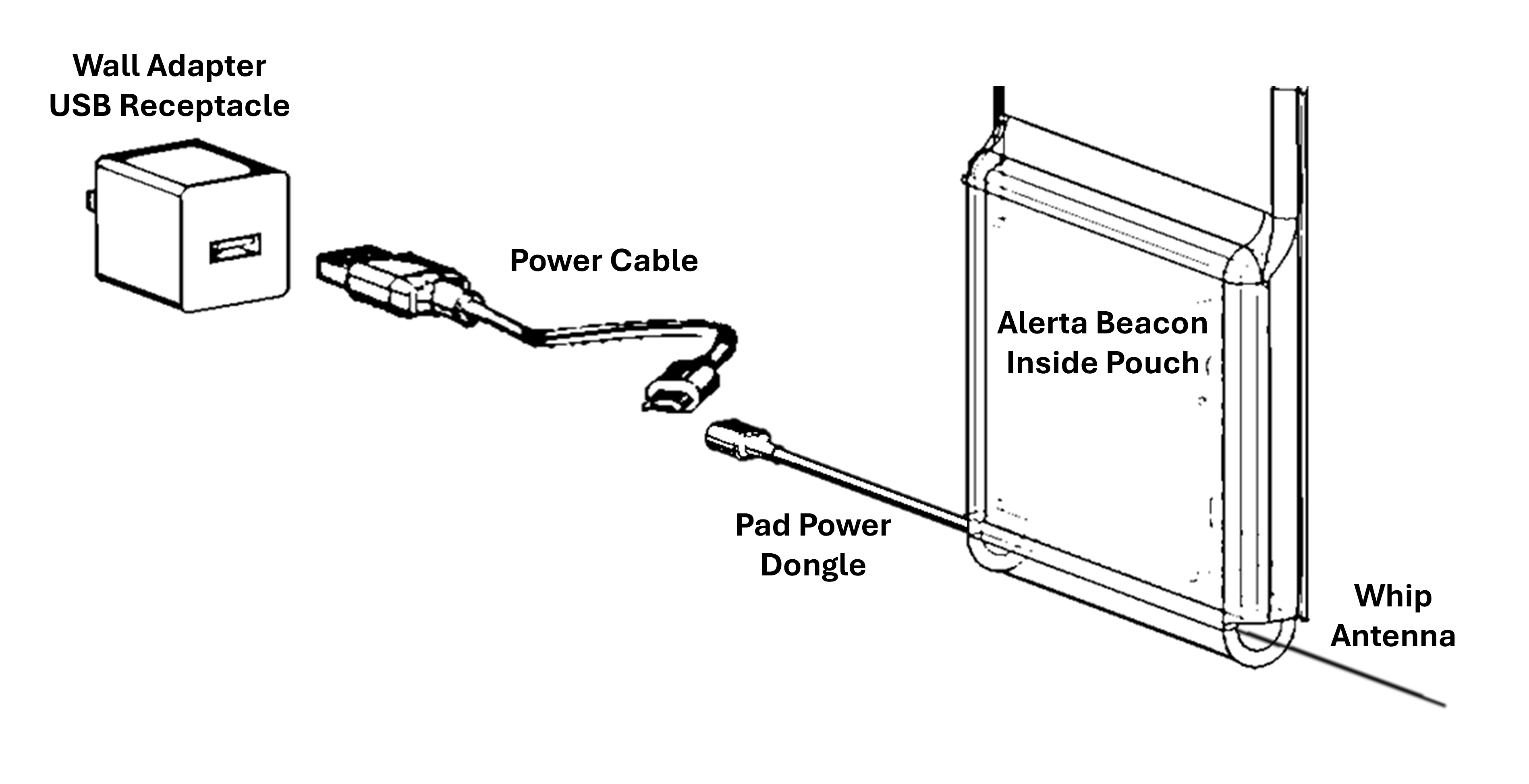

• Connect the Alerta Beacon USB power cable (Micro-B) to the power “dongle” extending from the sensor pad’s transmitter pouch
  ⚠️ Do not remove the Alerta Beacon from the pouch.
• Plug the other end of the USB cable into the wall adapter, and insert the adapter into a wall outlet.
• Keep the transmitter pouch visible and unobstructed. Do not place it under cushions or against metal frames, as this can block signal transmission.
• Make sure the whip antenna is sticking out of the pouch, not tucked inside.
• Safely route the power cord to avoid tripping or pinching hazards.

💡 Alerta Beacon Battery

• The Alerta Beacon contains a non-replaceable, non-removable 3.3 volt battery, which can provide power for short-term operation during power loss.
• Do not attempt to remove battery from Alerta Beacon.

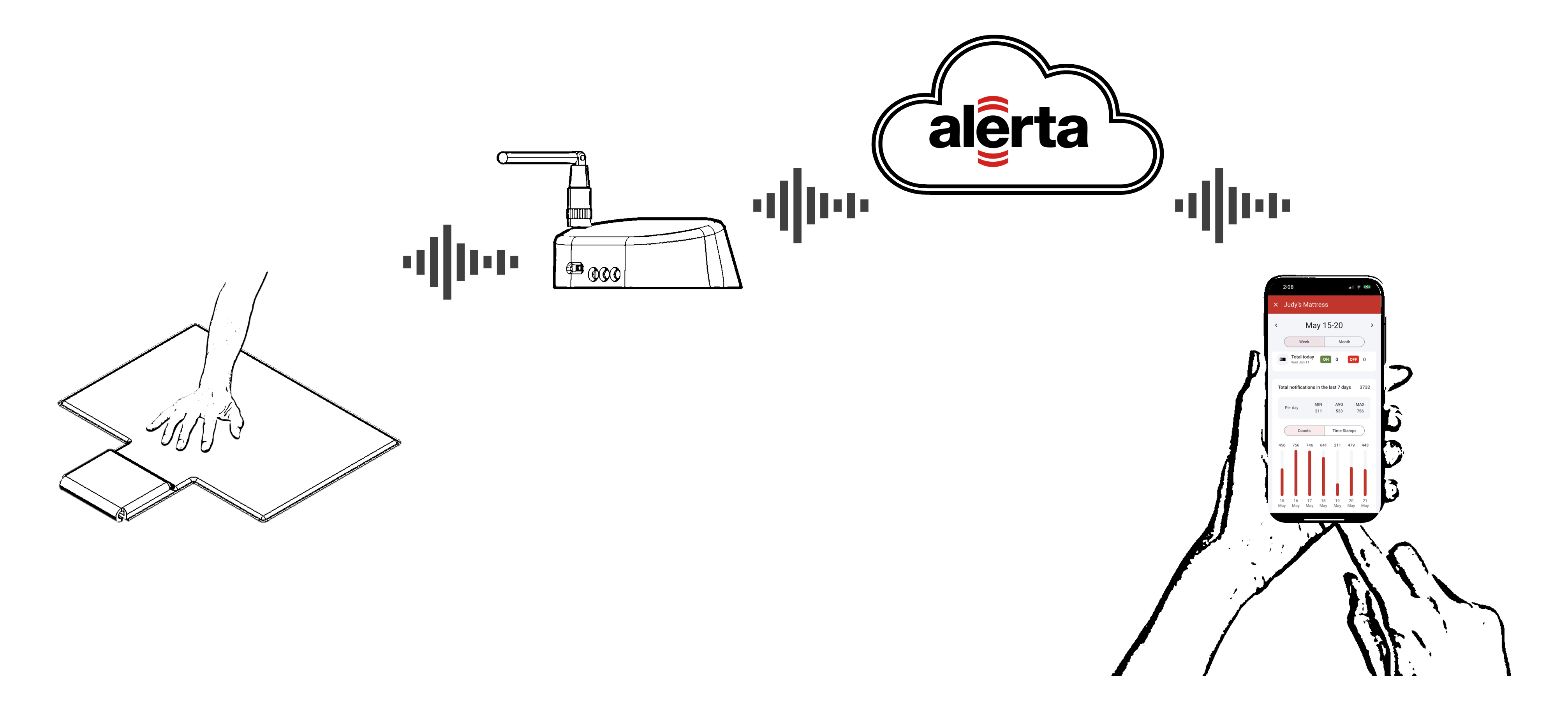

• Press the sensor pad and hold (for up to 90 seconds) to send a signal.
• Check the Alerta Family mobile app to confirm that the signal was received by the Alerta Wedge and the Alerta Cloud.

The Alerta Rest chair pad does not replace caregiver judgment.

• Monitors activity in close proximity.
• For home or care facility use.
• Not medical product or medical-grade product; does not diagnose, treat, cure, or prevent conditions.
• Accuracy is “reasonable” and should be part of a broader context.

• Do not immerse in fluids or expose to high heat.
• Wipe with disinfectant wipes or antibacterial cleaner.
• Dry with soft cloth.

1. Inspect pad, cord, and plug regularly.
2. Do not use if damaged.
3. Replace annually for safety.

• No guarantee of uninterrupted or error-free operation.
• Not warranted for medical/emergency use.
• Embedded software excluded from warranty.

This device complies with Part 15 of the FCC Rules:

1. May not cause harmful interference.
2. Must accept any interference received.

• Not a medical device.
• Not for disease diagnosis, treatment, or prevention.
• Not for location tracking.
